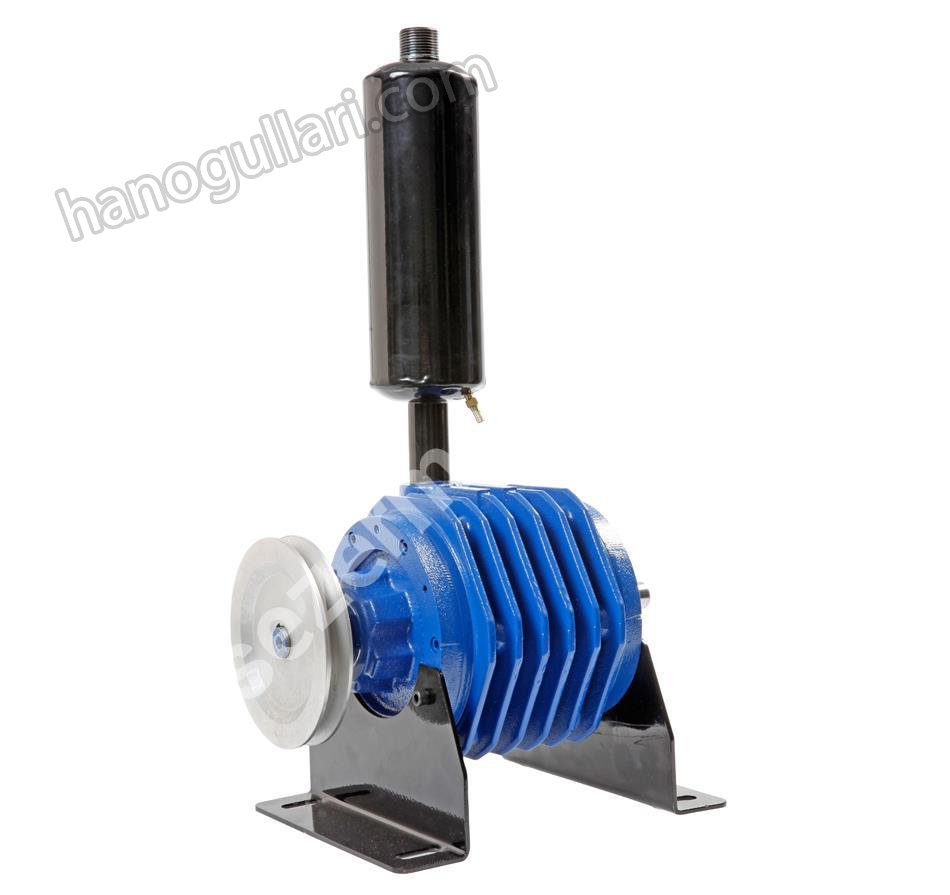

The suction capacity of the YVP 350 vacuum pump is 600 lt / min at 50 kPa (37.5 cm / Hg). The pallet material of the pump is fiber. The vacuum pump is designed to be used in fixed milking systems and it can milk 220 V 2 Hp 5 cattle, 10 sheep, goat 380 V 3 Hp 7 cattle, 14 sheep and goats. There are 2 Hp - 1500 d / d - 220 V (Single-phase) or 3 Hp-1500 d / d -380 V (Three-phase) electric motor options in the drive of the vacuum pump.

FLOW 350 LT / MIN.

POWER 2 HP (220 V)

PUMP SPEED 1200 D / D.

ELECTRIC MOTOR PULLEY SIZE 13x110xI

PUMP PULLEY SIZE 13x110xII

BODY AND ROTOR CASTING (GG SERIES)

PALLET TYPE FIBER

PALLET SIZE 120x45x4.75 MM.

WEIGHT 23 KG
