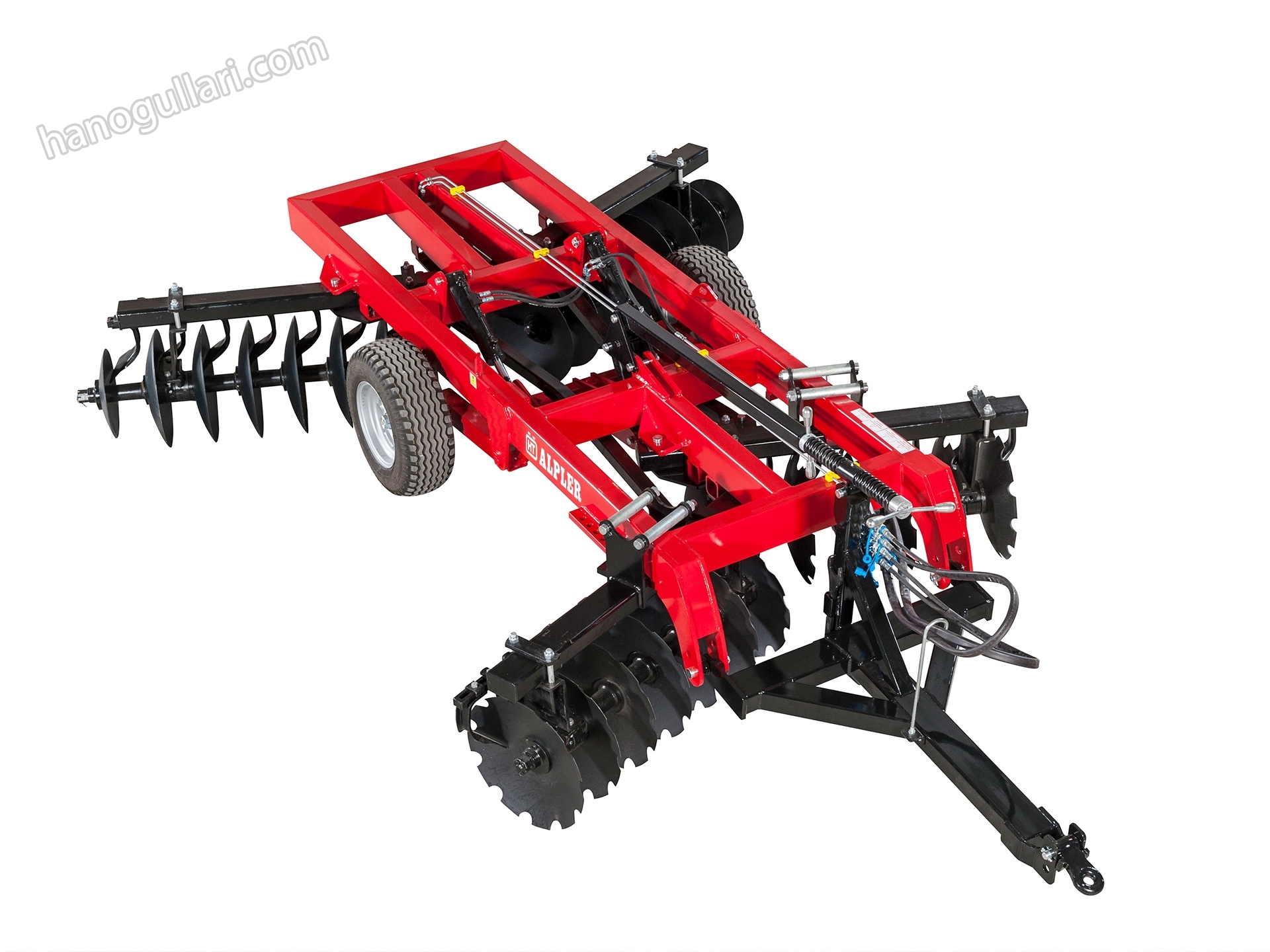

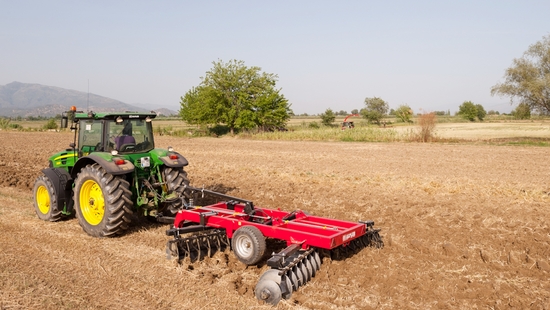

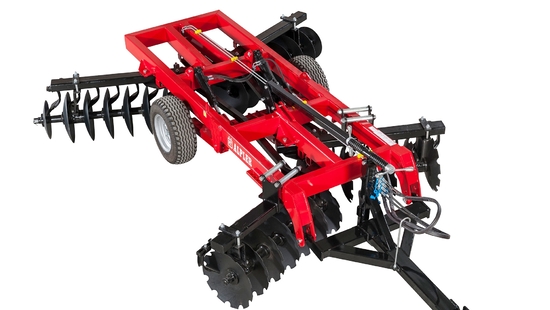

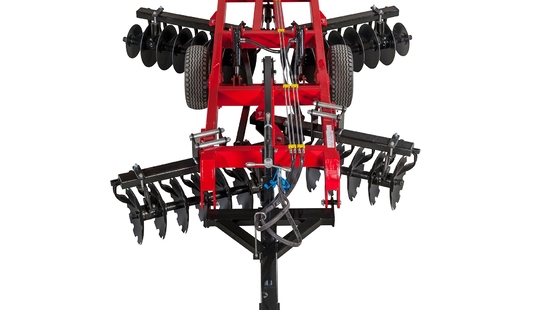

Trailed X Type Disc Harrow
- Special alloy, durable, gears and straight drives.
- Hydraulic depth and transport tires.
- Quick and effortless transition to field or road situation.
- Easy working angle adjustment that can be adjusted mechanically (Standard) or hydraulically (Optional).
- No more clogging problems thanks to the extended disc range and disc scrapers.
- Steel roller bearings and rollers that provide trouble-free and long-lasting operation.
Hidrolik çalışma açısı ayarı
| MODEL | NUMBER OF DISCS (PIECES) | DISC DIAMETER (CM) | DISTANCE BETWEEN DISCS (CM) | WORKING WIDTH (CM) | WORKING DEPTH (CM) | WEIGTH (KG) | POWER REQUIREMENT (HP) |
|---|---|---|---|---|---|---|---|
| CDHX20 | 20 | 610 | 23 | 250 | 22 | 1660 | 80-90 |
| CDHX24 | 24 | 610 | 23 | 300 | 22 | 1920 | 100-110 |
| CDHX28 | 28 | 610 | 23 | 350 | 22 | 2120 | 120-130 |
| |||||||
