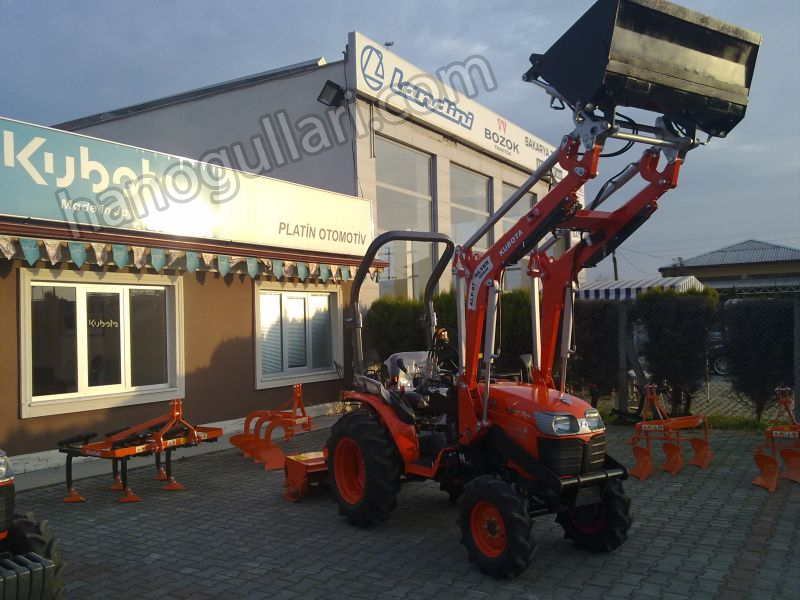

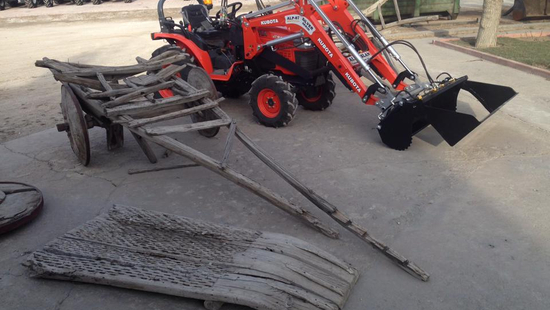

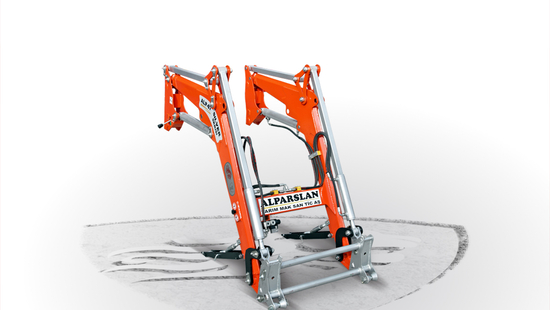

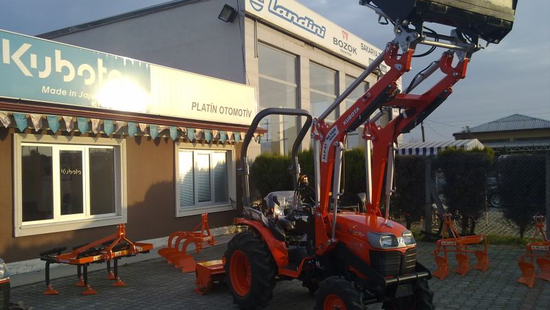

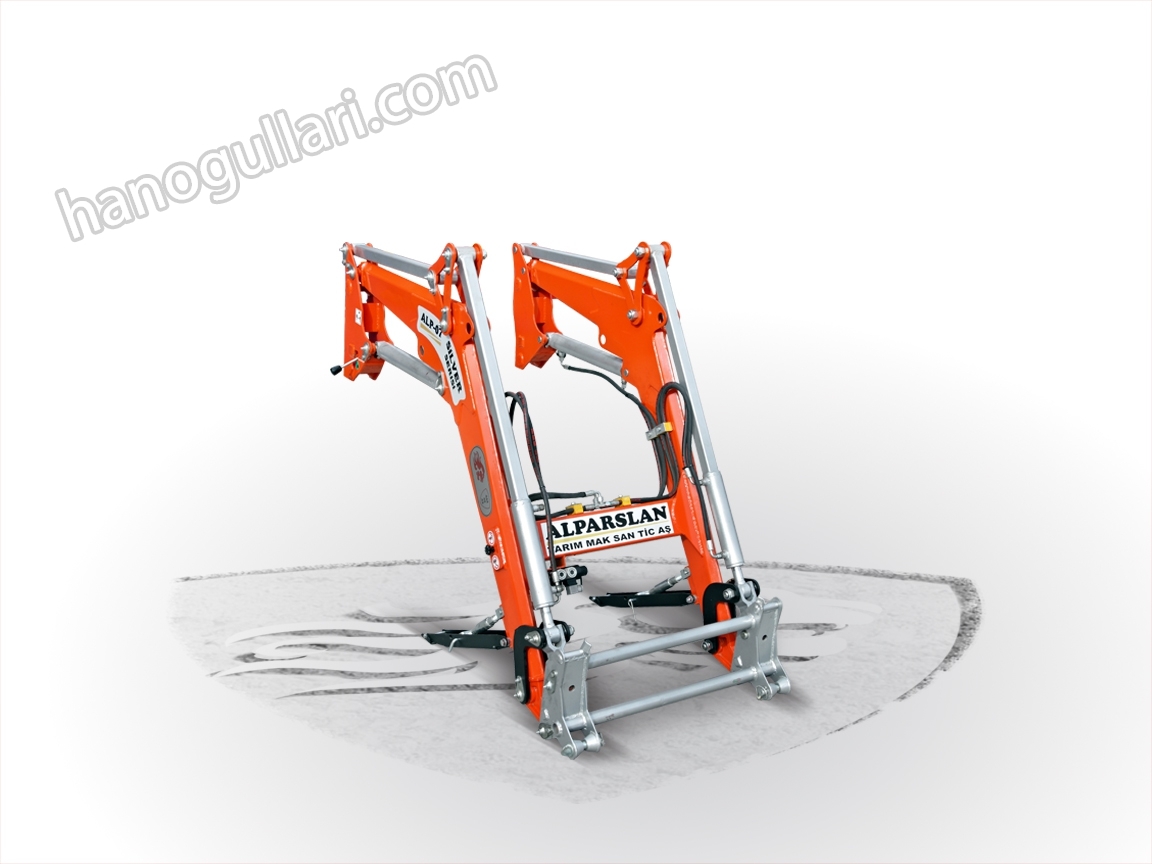

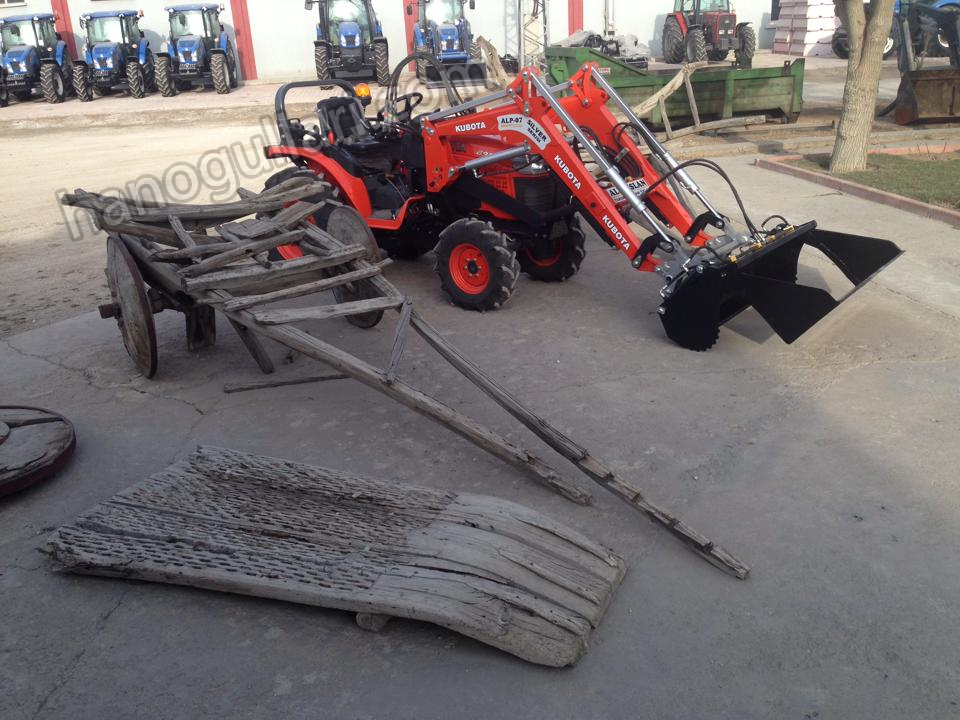

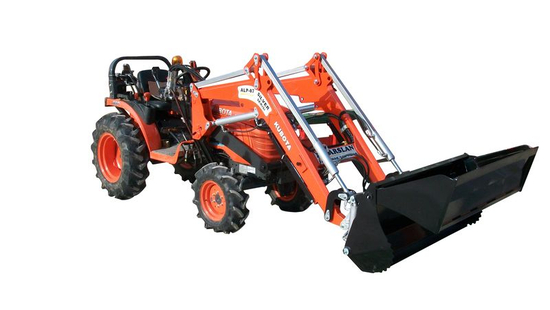

Silver Series Tractor Front Loader
-
APPLICATION
Silver Series Tractor Front Loader, 25 to 45 HP (horse) such as New Holland, Case, Tümosan, John Deere, Massey Fergusan, Mc Cormick, Landini, Fendt, Erkunt, Lomborghini, Deutz - Fahr, Same, Stery, Class, Valtra This is a front loader bucket series that can be attached to field type agricultural tractors. -
OUR FRONT LOADER
It has been produced with different attachment design features, taking into account the use of front loaders mounted on agricultural tractors of factories, construction companies, municipalities, etc., especially in livestock enterprises. You can find attachment options on our website. -
ASSEMBLY
Thanks to the special connection angle design of the sub-chassis, the ideal distribution of the load on the main body of the tractor is ensured and the deterioration of the steering angles is prevented by not removing any part of it. -
BUSHES AND PINS
Cylindrical bushings used in all joint points are selected from bronze materials that do not wear out even under extreme loads. All pins used in the joint points are made of steel material, galvanized and resistant to high strength with its non-rusting feature.

| EXPLANATION | DETAIL |
|---|---|
| Maximum Lift Height (A) | 2200 mm |
| Maximum Lift Height (Floor and Attachment) | 2100 mm |
| Discharge Height (B) | 1800 mm |
| Transport Angle at Maximum Height (A) | 45 degrees |
| Discharge Angle at Maximum Height (B) | 55 degrees |
| Gathering Angle at Minimum Height | 45 degrees |
| Attachment Breaking Capacity from Ground | 750 kg |
| Maximum Height Carrying Capacity | 775 kg |
| Attachment Balancing System | Mechanical |
| Anti-Shock System | Optional |
| Joystick Control System | Standard |
| Movable Attachment Hydraulic Valve | Optional |
| Quick Attachment Removal-Fitting Adapter | Optional |
| Front Loader Weight | 200 kg |
| Required Tractor Horsepower (HP) Range | 25-45 HP |
