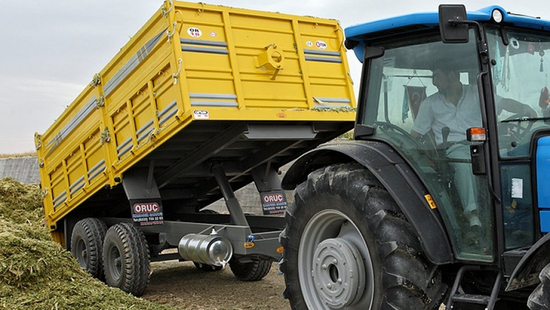

OR 18 / OR 19 Double Axle Tandem System Trailer
Our OR 18 trailer has 2 axles and 4 tires and its axle system is different than other trailers.
Tandem axle system is used. It met the manufacturer as the leader of its class with its hydraulic front jack and strong fiber.
Trailer axles are closed hub system and do not require lubrication and maintenance for many years.
Our trailer is attached to the tractor from the rear and is towed with the appropriate speed limit.
The trailer capacity varies according to the volume of the material thrown on it.
| PRODUCT CODE | OR 18 ***** OR 19 Double Axle Tandem System Trailer |
| ----------- | |
| Tonnage | OR18..9.000 KG ****OR19...11,000 kg |
| Tare | OR18..2360 KG ****OR19.....2600 KG |
| Cargo Space | OR18..11 M3 ****OR 19....12,5 M3 |
| Loading Area | ------- |
| Case Inner Length | ------ |
| Case Inner Width | ------ |
| Height/Width/Lenght | OR18*4500mm/2200mm/2350mm OR19*5000mm/2200mm/2350mm |
| Cover Height | OR18*600mm(300+300mm add) OR19*600mm(300+300mm add) |
| ----- | |
| Track Width | 1600mm same for both types |
| Suspension System | Leaf Scissors |
| Tires | 400*60*15,5 |
| Maximum speed | 20 km |
| Dumper System | Hydraulic |
| Telescopic Cylinder | 1/4 |
| Brake Type | Hydraulic |
| Tilting Angle (Back / Sides) | 45 degree |
