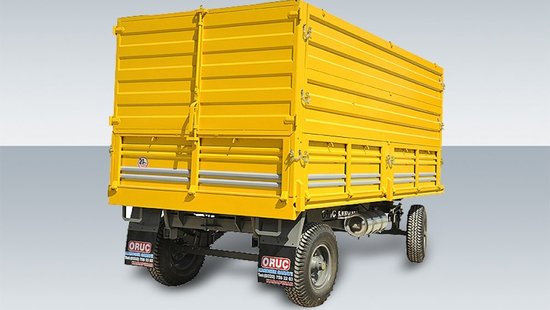

OR 09 Double Axle Straw and Silage Container
The feature that distinguishes our OR 09 model from OR 08 is that the closed part of our OR 09 model is portable and can be disassembled.
After transporting straw and silage, the upper part can be removed and the remaining part can be used as a 5-ton trailer.
Trailer axles are closed hub system and do not require lubrication and maintenance for many years.
Our trailer is attached to the tractor from the rear and is towed with the appropriate speed limit.
The trailer capacity varies according to the volume of the material thrown on it.
| PRODUCT CODE | OR 09 Double Axle Straw and Silage Container |
| ------- | |
| Tonnage | 1000 KG Straw |
| Tare | 1680 KG |
| Cargo Space | 13 M3 |
| Loading Area | ------ |
| Case Inner Length | ------ |
| Case Inner Width | ----- |
| Height/Width/Lenght | 4000mm**2000mm**2780mm |
| Cover Height | 550mm cover+(1140mm portative additional cover) |
| ------ | |
| Track Width | 1600mm |
| Suspension System | Leaf Scissors |
| Tires | 750*16*12 |
| Maximum speed | 20 KM |
| Dumper System | Hydraulic |
| Telescopic Cylinder | 1/3 |
| Brake Type | Hydraulic |
| Tilting Angle (Back / Sides) | 45 degree |
