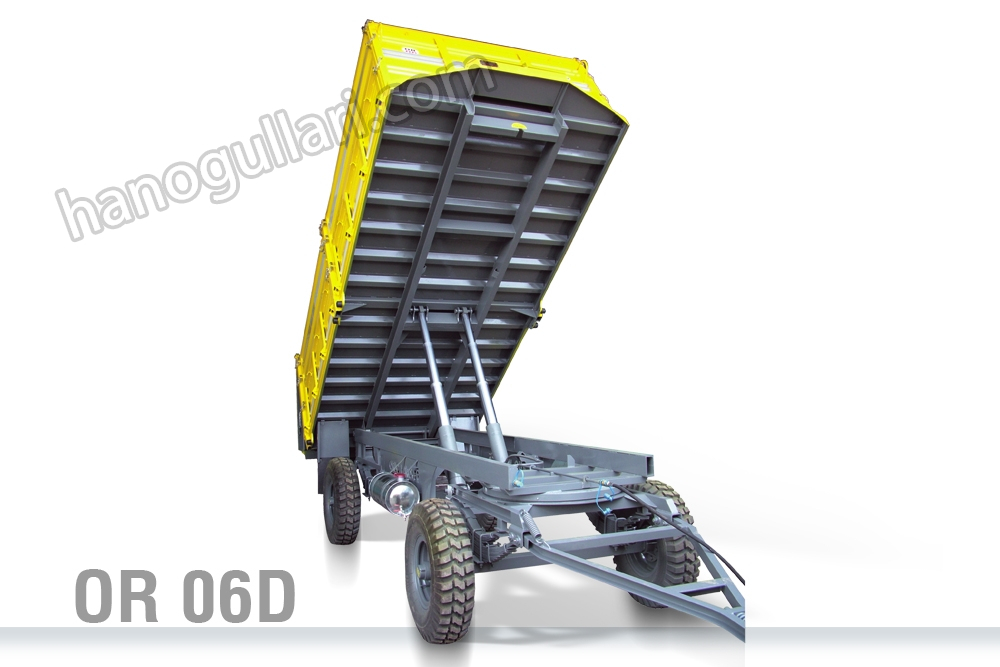

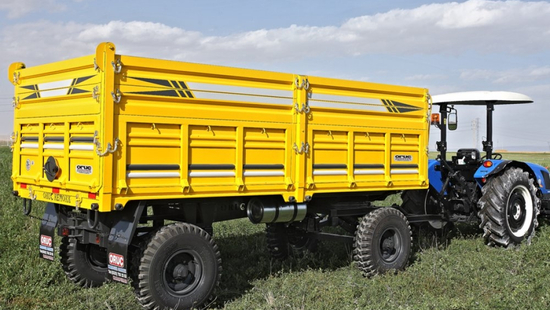

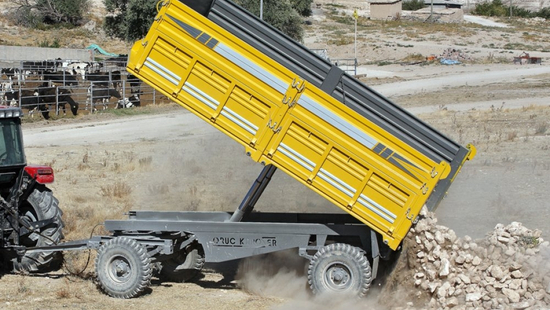

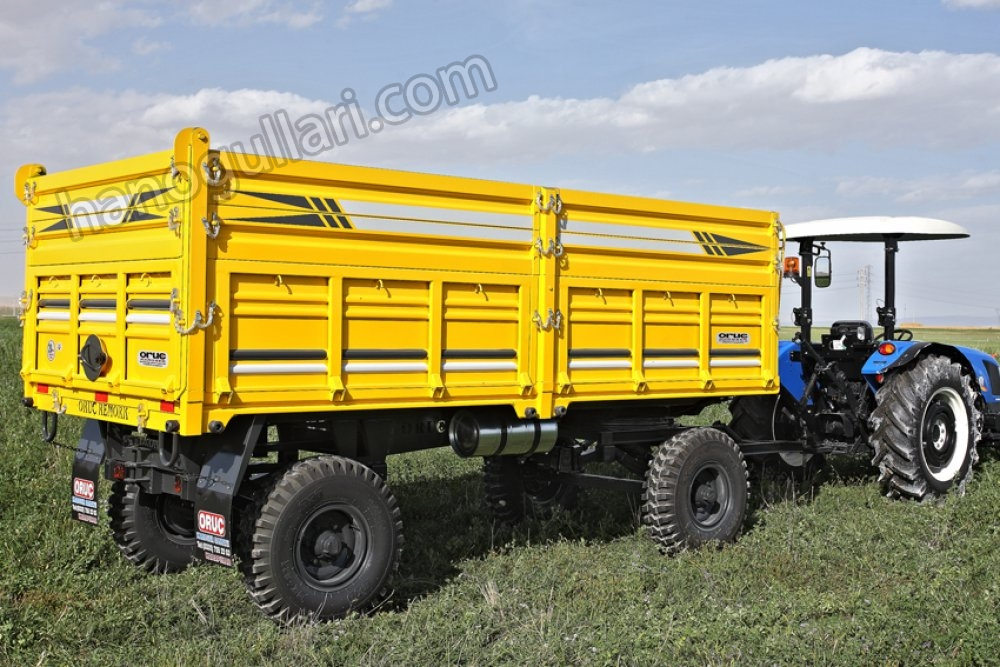

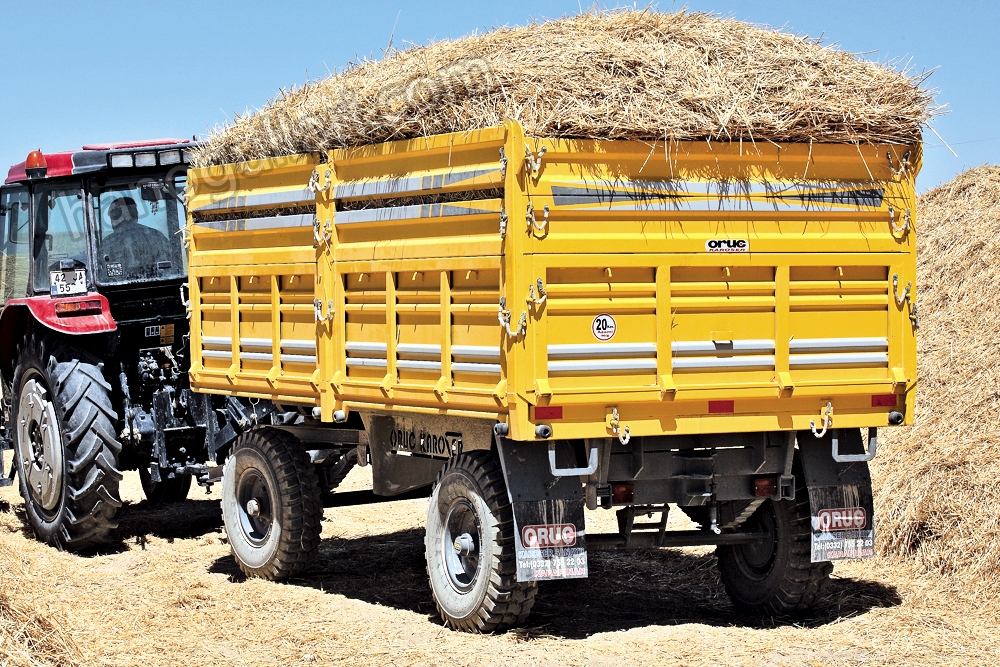

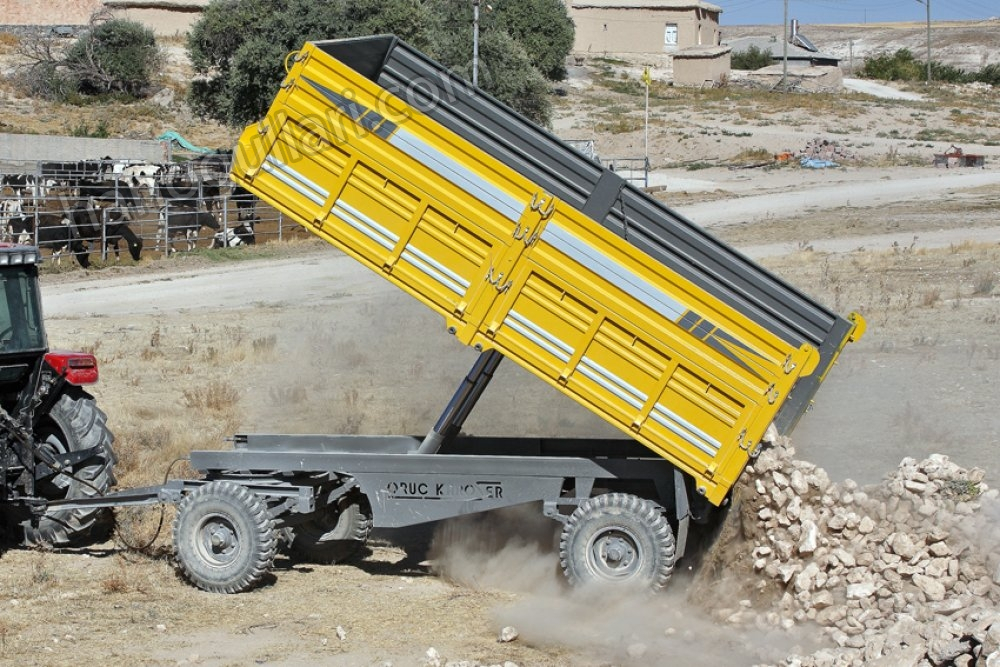

OR 05D Double Axle Double Add Trailer
Our OR 06D Trailer is manufactured with double axle sheet metal case and back tilt.
In our trailer, an inner lifting system has been applied. There is no problem with the uninstall system.
There is a balance arm between the chassis in the revolving lift-up trailers whose length exceeds 450 cm.
Our trailer axles are a closed hub system and an optional brake system is placed, it does not require lubrication for many years.
Our trailer is attached to the tractor from the rear and is towed with the appropriate speed limit.
The trailer capacity varies according to the volume of the material thrown on it.
| PRODUCT CODE | OR 05D DOUBLE AXLE DOUBLE ADDITIONAL TRAILER | ||
| Max Weight Allowed | -------- | ||
| Tonnage | 10,000KG | ||
| Tare | 2460 KG | ||
| Cargo Space | 10.5M3 | ||
| Loading Area | ------- | ||
| Case Inner Length | ------ | ||
| Case Inner Width | ------ | ||
| Height/Width/Lenght | 4500mm*2200mm**2500mm | ||
| Cover Height | 600mm(300+300mm add) | ||
| ------- | |||
| Track Width | 1600mm | ||
| Suspension System | Leaf Scissors | ||
| Tires | 900*16*14 | ||
| Maximum speed | 20 KM | ||
| Dumper System | hydraulic | ||
| Telescopic Cylinder | 1*4 | ||
| Brake Type | hydraulic | ||
| Tilting Angle (Back / Sides) | 45 degree |
