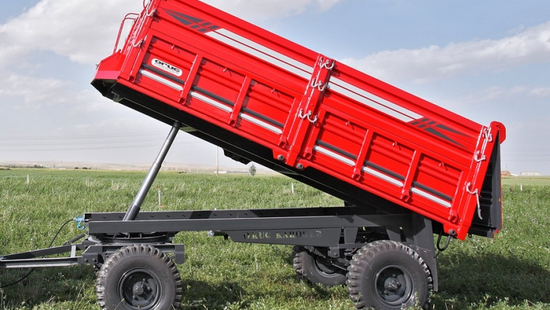

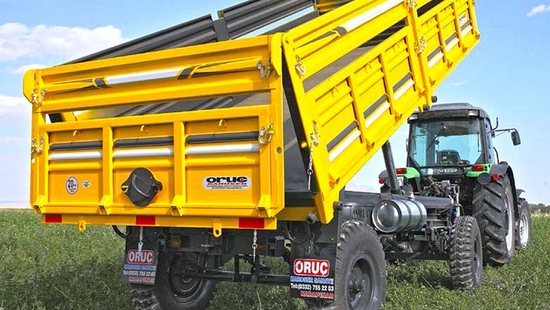

OR 03D Double Add Double Axle Trailer
Our OR 03D trailer is manufactured as double axle and sheet metal case back tilt.
The feature that distinguishes our trailer from other trailers is that the damper system is made from the inside of the doner, not the middle.
Easy to use, it is designed for severe azari conditions.
Trailer axles are closed hub system and do not require lubrication for many years.
Our trailer is attached to the tractor from the rear and is towed with the appropriate speed limit.
The trailer capacity varies according to the volume of the material thrown on it.
| PRODUCT CODE | OR03 -D | ||
| Max Weight Allowed | -------- | ||
| Tonnage | 6000KG | ||
| Tare | 1950 KG | ||
| Cargo Space | 6,5M3 | ||
| Loading Area | -------- | ||
| Case Inner Length | -------- | ||
| Case Inner Width | --------- | ||
| Height/Width/Lenght | 4000mm**2100mm**2135mm | ||
| Cover Height | 550mm+250mm+250mm(ilave) | ||
| -------- | |||
| Track Width | 1600mm | ||
| Suspension System | leaf scissors | ||
| Tires | 900*16*14 | ||
| Maximum speed | 20 km | ||

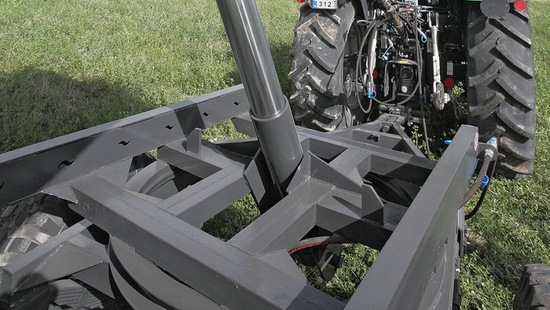

| Dumper System | hydraulic | ||
| Telescopic Cylinder | 1*4 | ||
| Brake Type | hydraulic | ||
| Tilting Angle (Back / Sides) | 45 degree |
