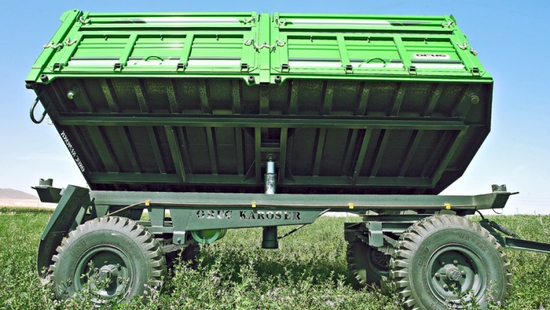

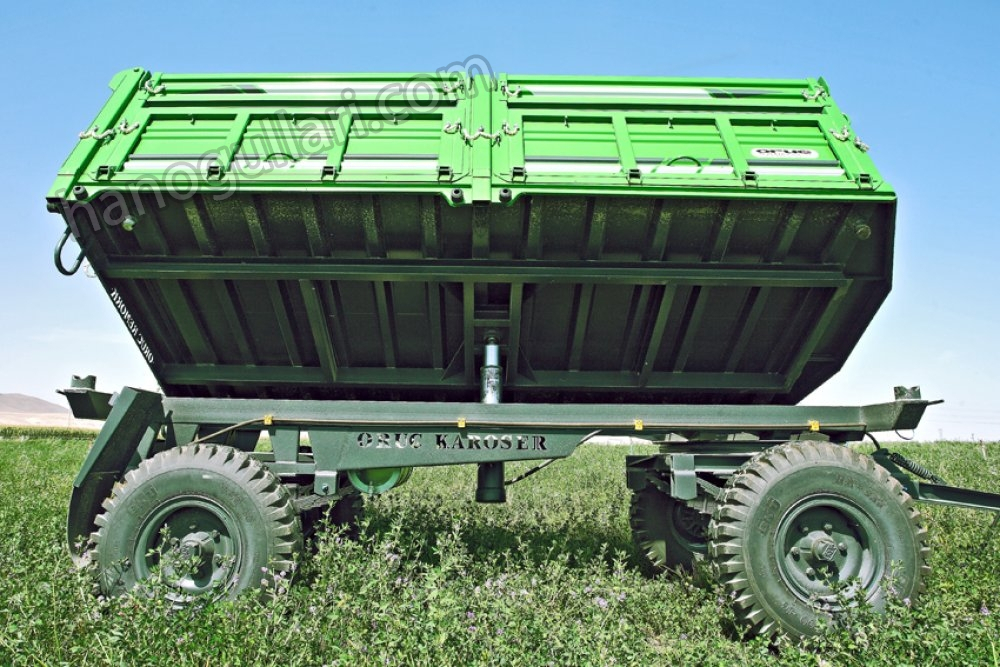

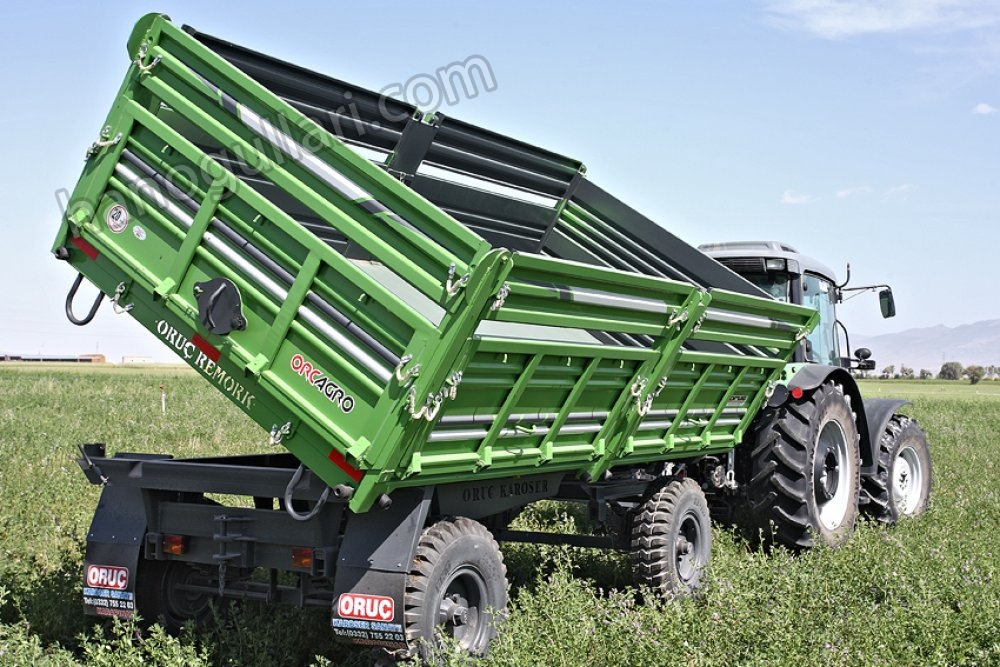

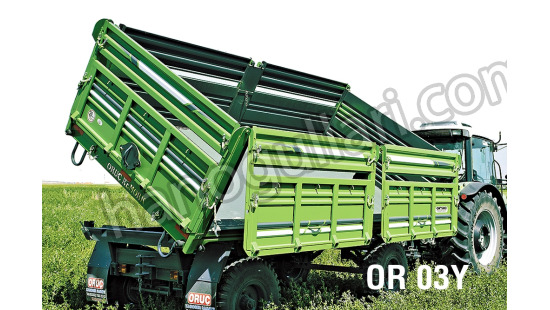

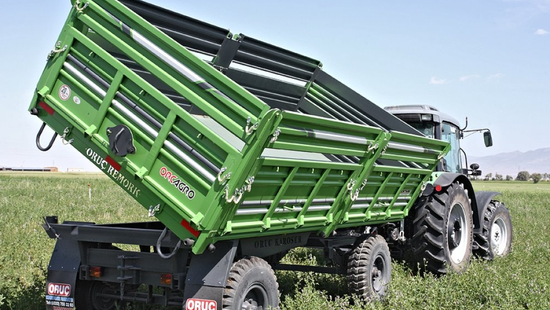

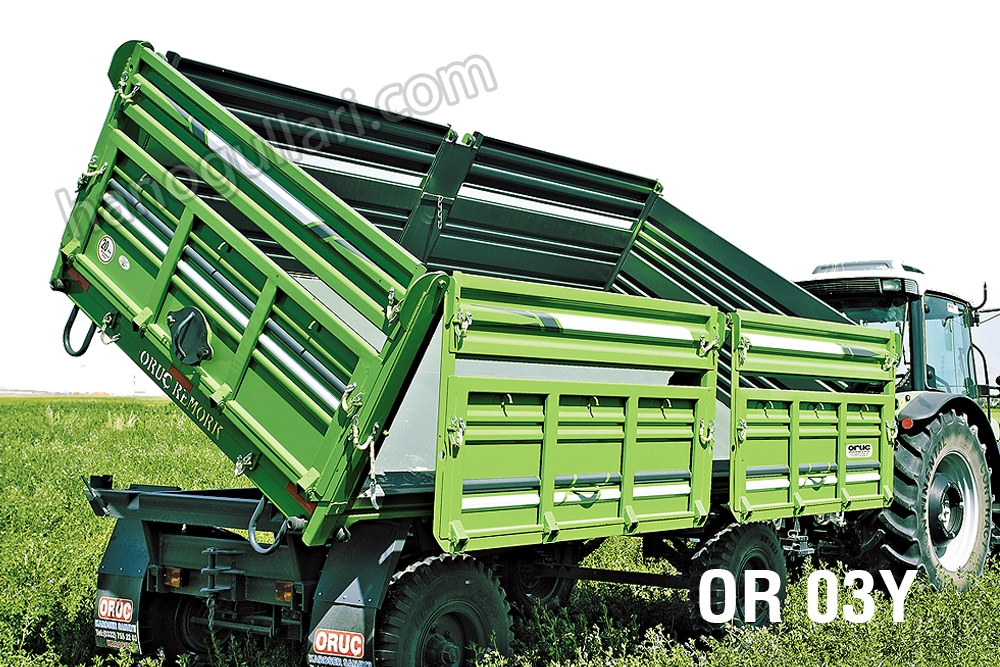

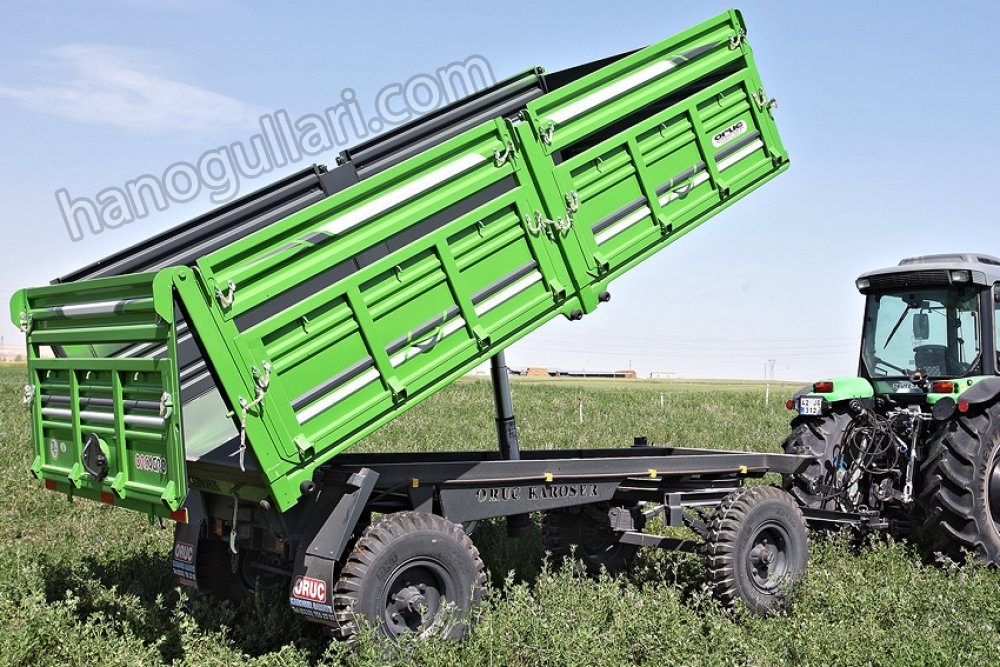

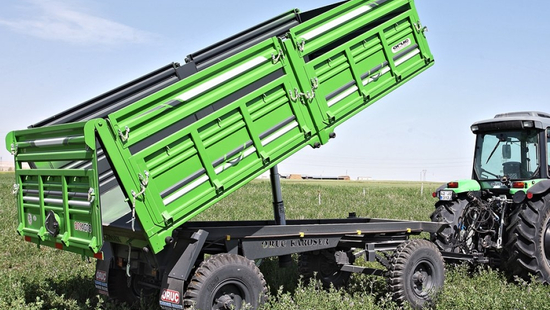

OR 03D - 03Y Double Axle and Three Side Tipping Trailers
Our OR 03D - 03Y trailer has 3 sides tilt and is the most useful trailer in its class.
You can unload your load by lifting to the right or left in low-height warehouses and save time and labor.
Trailer axles are closed hub system and do not require lubrication for many years.
Our trailer is attached to the tractor from the rear and is towed with the appropriate speed limit.
The trailer capacity varies according to the volume of the material thrown on it.
| PRODUCT CODE | OR03 D**OR03Y Triple tilting | ||
| Max Weight Allowed | ---------- | ||
| Tonnage | 6000 KG | ||
| Tare | 1950 KG | ||
| Cargo Space | 6,5 M3 | ||
| Loading Area | -------- | ||
| Case Inner Length | ------- | ||
| Case Inner Width | -------- | ||
| Height/Width/Lenght | 4000mm**2100mm**2100mm | ||
| Cover Height | 550mm**330mm(additional) | ||
| --------- | |||
| Track Width | 1600 mm | ||
| Suspension System | Leaf Scissors | ||
| Tires | 900*16*14 KAT optional 400x60x15,5 tyre can be used) | ||
| Maximum speed | 20 KM | ||
| Dumper System | hydraulic | ||
| Telescopic Cylinder | 1*4 | ||
| Brake Type | hydraulic | ||
| Tilting Angle (Back / Sides) | 45 degree |
