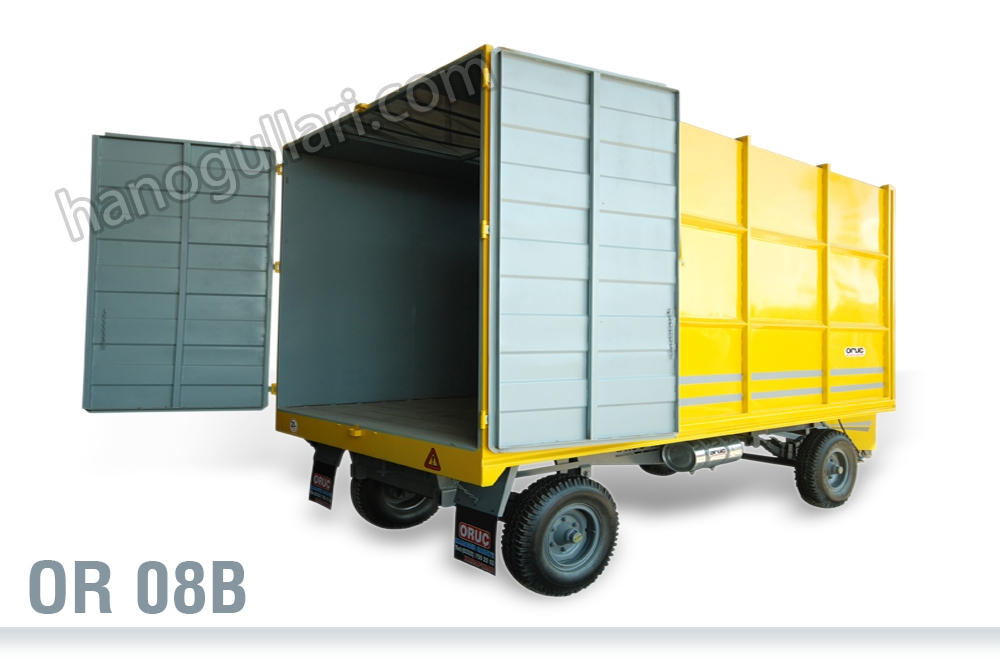

He 08B Harvesters Trailers
Our OR 08B trailer is used to transport straw and silage in the form of a double axle closed sheet case.
Our trailer is mid-fiber and is used for straw and silage transportation. There is no problem with draining.
Our axles are closed hub system and do not need lubrication when making straw and silage.
Our trailer is attached to the tractor from the rear and is towed with the appropriate speed limit.

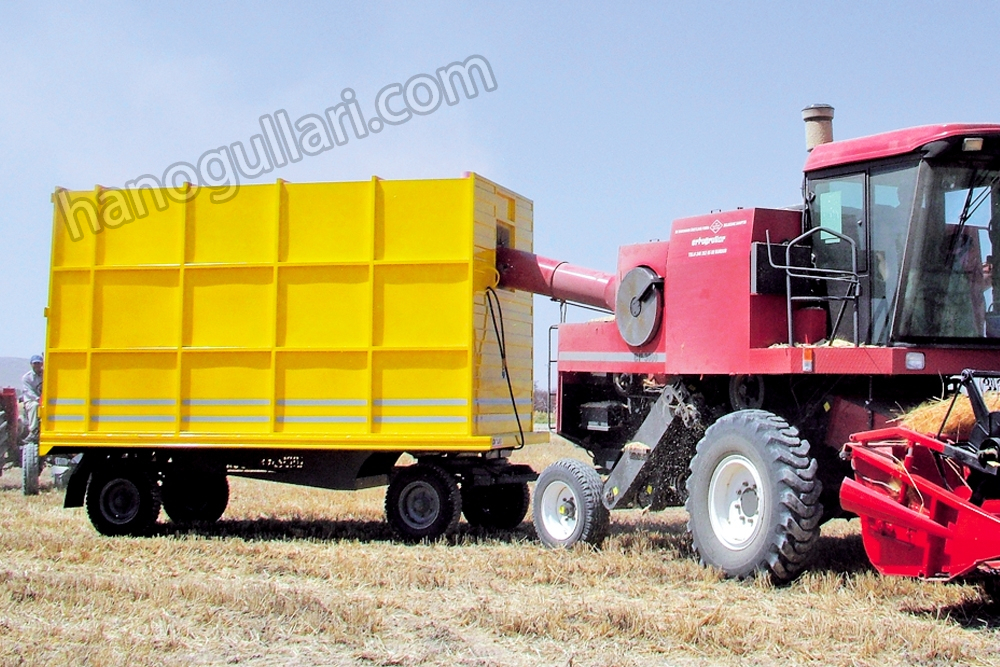

The OR 08 Combine is the largest of the straw hauling trailers. The harvester is mounted directly behind the harvester and comes to the level of the chimney.
The trailer capacity varies according to the volume of the material thrown on it.
| PRODUCT CODE | He 08B Harvesters Trailers |
| ------- | |
| Tonnage | 2000 KG |
| Tare | 2100 KG |
| Cargo Space | 25M3 |
| Loading Area | ------- |
| Case Inner Length | ------ |
| Case Inner Width | ------- |
| Height/Width/Lenght | 4800mm*2350mm*3400mm |
| Cover Height | 2300mm |
| ------ | |
| Track Width | 1600mm |
| Suspension System | Leaf Scissors |
| Tires | 900*16*14 |
| Maximum speed | 20 km |

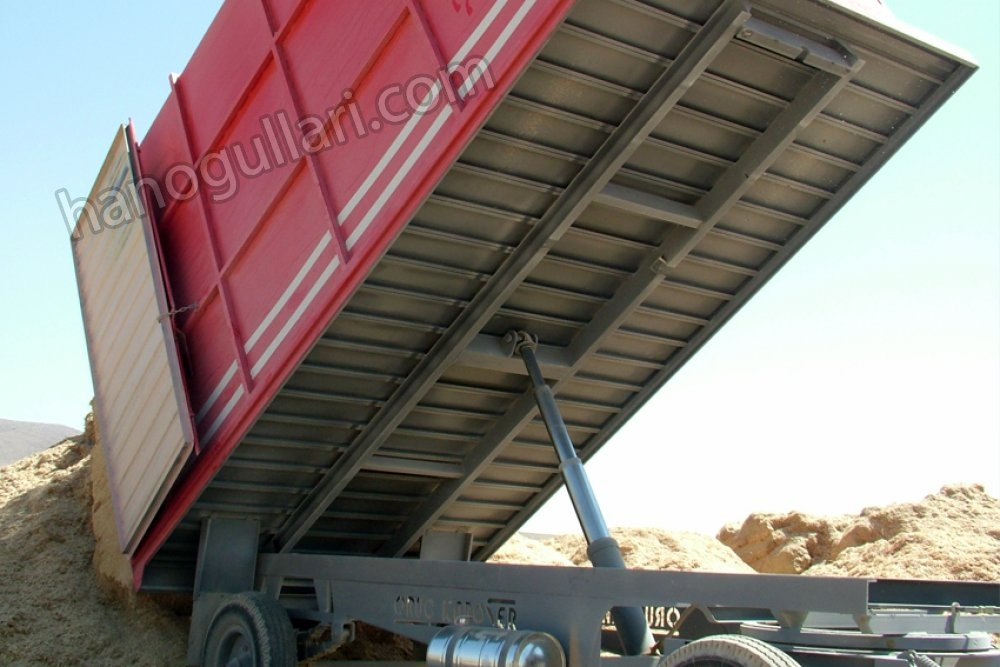

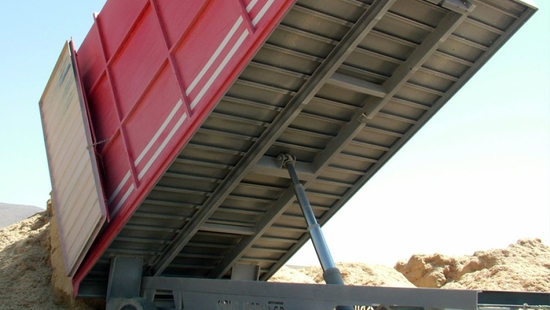

| Dumper System | Hydraulic |
| Telescopic Cylinder | 1*3 |
| Brake Type | Hydraulic |
| Tilting Angle (Back / Sides) | 45 degree |
