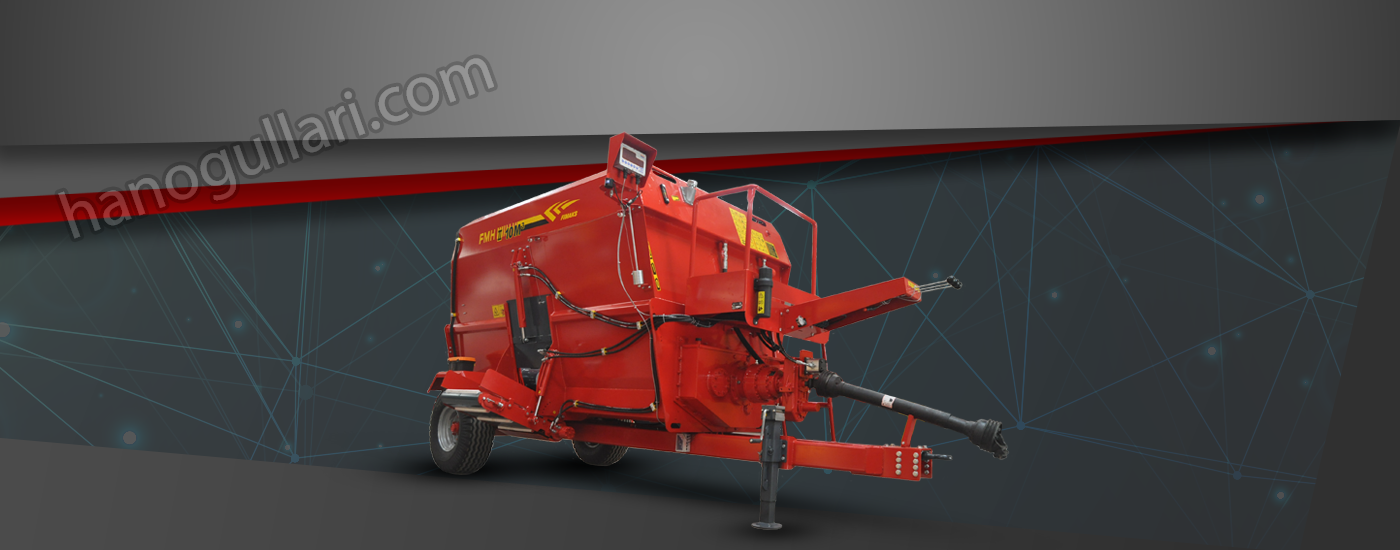

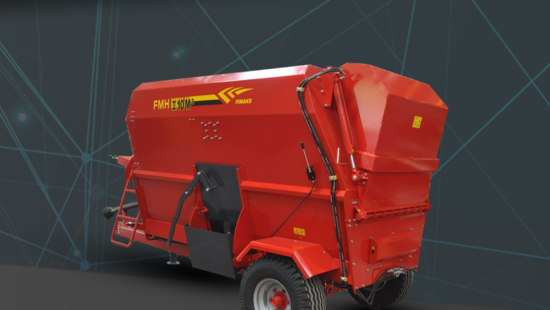

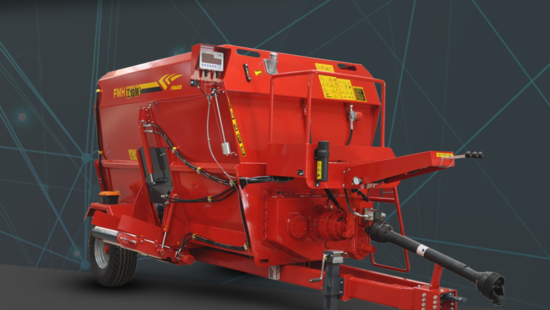

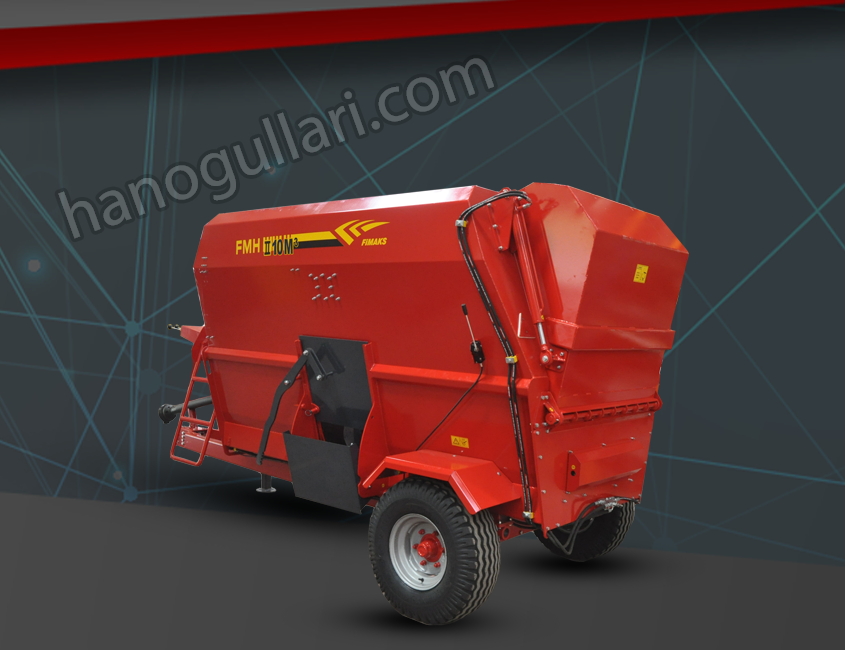

10 Cubic Meter Double Auger Horizontal Mixer Feeder | FMHII 10 |

Marka:

Fimaks

Paylaş:

Fimaks FMHII 10, double augers horizontal mixer feeder is ideal machine for small and medium scale farms. Low machine height allows it to be used in many old type barns. Double augers that are placed at the bottom of the machine prepares the feed mix homogeneously and fast. Well balanced double main augers have special designed and carefully placed knives on them. There are two different type of knives are placed on the augers. Round and trigon shaped knives can cut all the feed materials easily. High quality gearboxes, ST 52 metal body, special design augers and knives, optimum performance self hydraulic system, strong chassis and tyres; These are the most important features of high quality, high performance Fimaks horizontal mixer feeders .

Fimaks double auger horizontal mixer feeders have self hydraulic systemhydraulic discharge doorloading bucket and lateral conveyor as standard features. There are also optional features such as weighing system and 2. side hydraulic door and conveyor.

VOLUME (m3) 10
DISCHARGE SYSTEM LATERAL CONVEYOR
NUMBER OF AUGERS (pcs) 2 MAIN AUGERS
HEIGHT (mm) 2500
LENGTH (mm) 5480
WIDTH (mm) 2200
WEIGHT (kg) 4300
POWER REQUIREMENT (hp) 60
NUMBER OF KNIVES (circle/round) 76+40
PTO (rpm) 540
BOTTOM / BODY / AUGER THICKNESS (mm) 10/5/15
TYRE SIZE 2x(11.5/80 R15.3)
