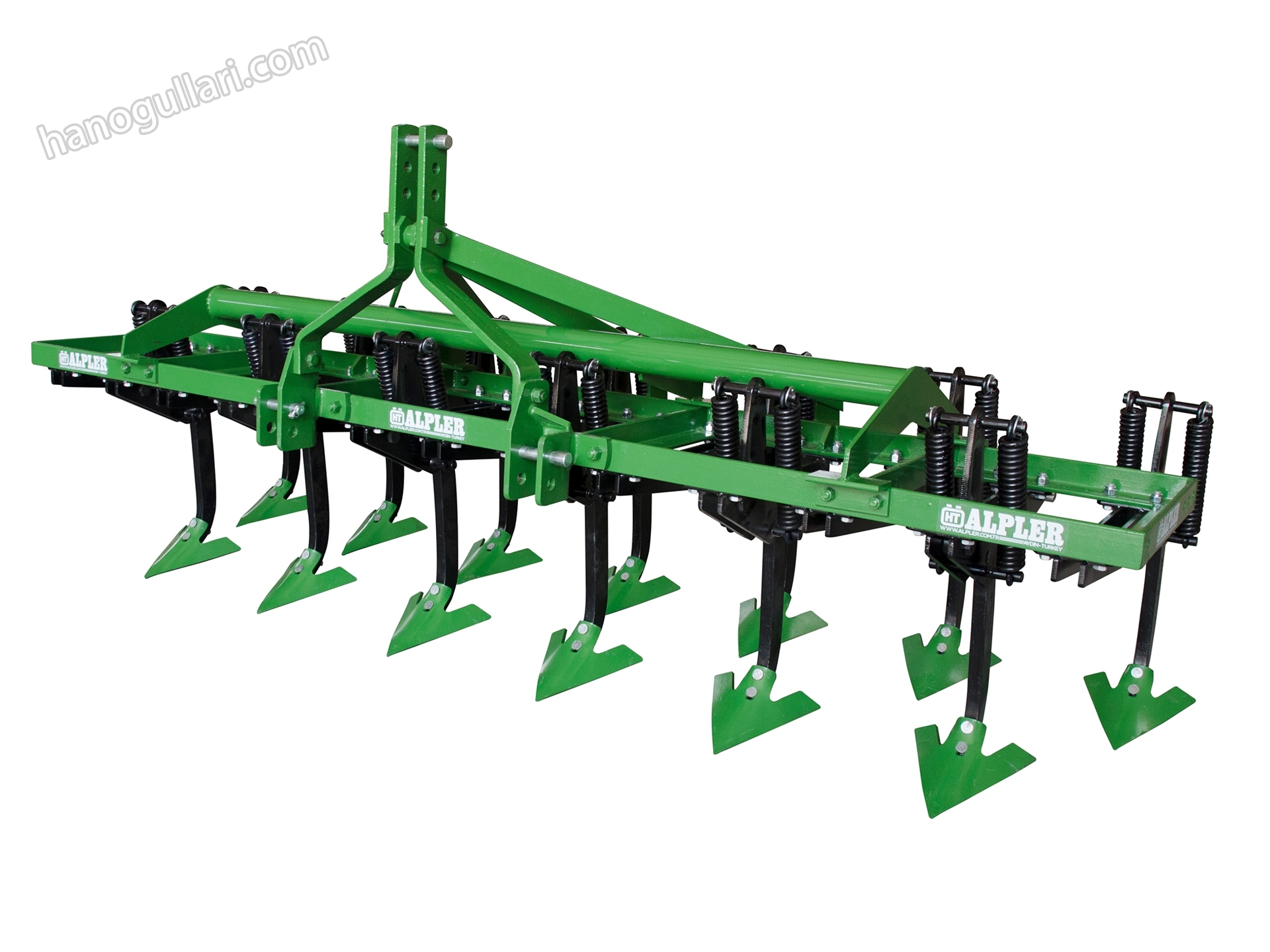

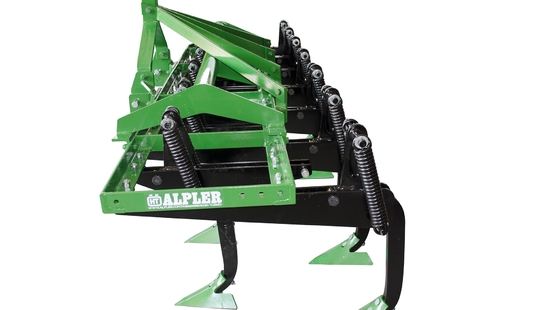

Spring Cultivator (Heavy Type)
- Different share types for different solutions.
- Thanks to the springs vibrations for safe working opportunity. Due to the vibrations, reduction of traction force.
- Good clearance for trashy conditions where the quantity of trash may otherwise cause blockage.
- Hydraulic mechanism (Optional) for shifting the Cultivator easily closer to the trees and fences.
- Roller
- Reversible cultnator point
| MODEL | NUMBER OF TINES (PIECES) | CLEARANCE (CM) | DISTANCE BETWEEN BEAMS (CM) | WORKING WIDTH(CM) | WORKING DEPTH (CM) | WEIGTH(KG) | POWER REQUIREMENT (HP) |
|---|---|---|---|---|---|---|---|
| AKL 05 | 5 | 62 | 25 | 125 | 15 | 294 | 40-50 |
| AKL 07 | 7 | 62 | 25 | 175 | 15 | 400 | 50-60 |
| AKL 09 | 9 | 62 | 25 | 225 | 15 | 481 | 60-70 |
| AKL 11 | 11 | 62 | 25 | 275 | 15 | 585 | 70-80 |
| AKL 13 | 13 | 62 | 25 | 325 | 15 | 727 | 80-100 |
| AKL 15 | 15 | 62 | 25 | 375 | 15 | 800 | 100-200 |
| |||||||
