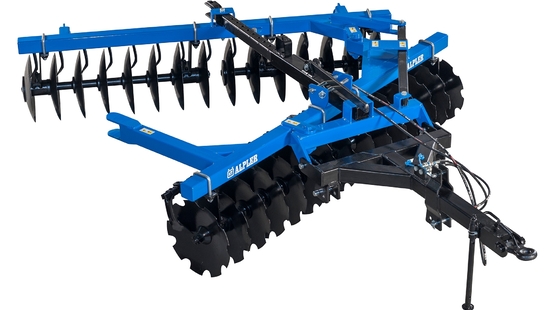

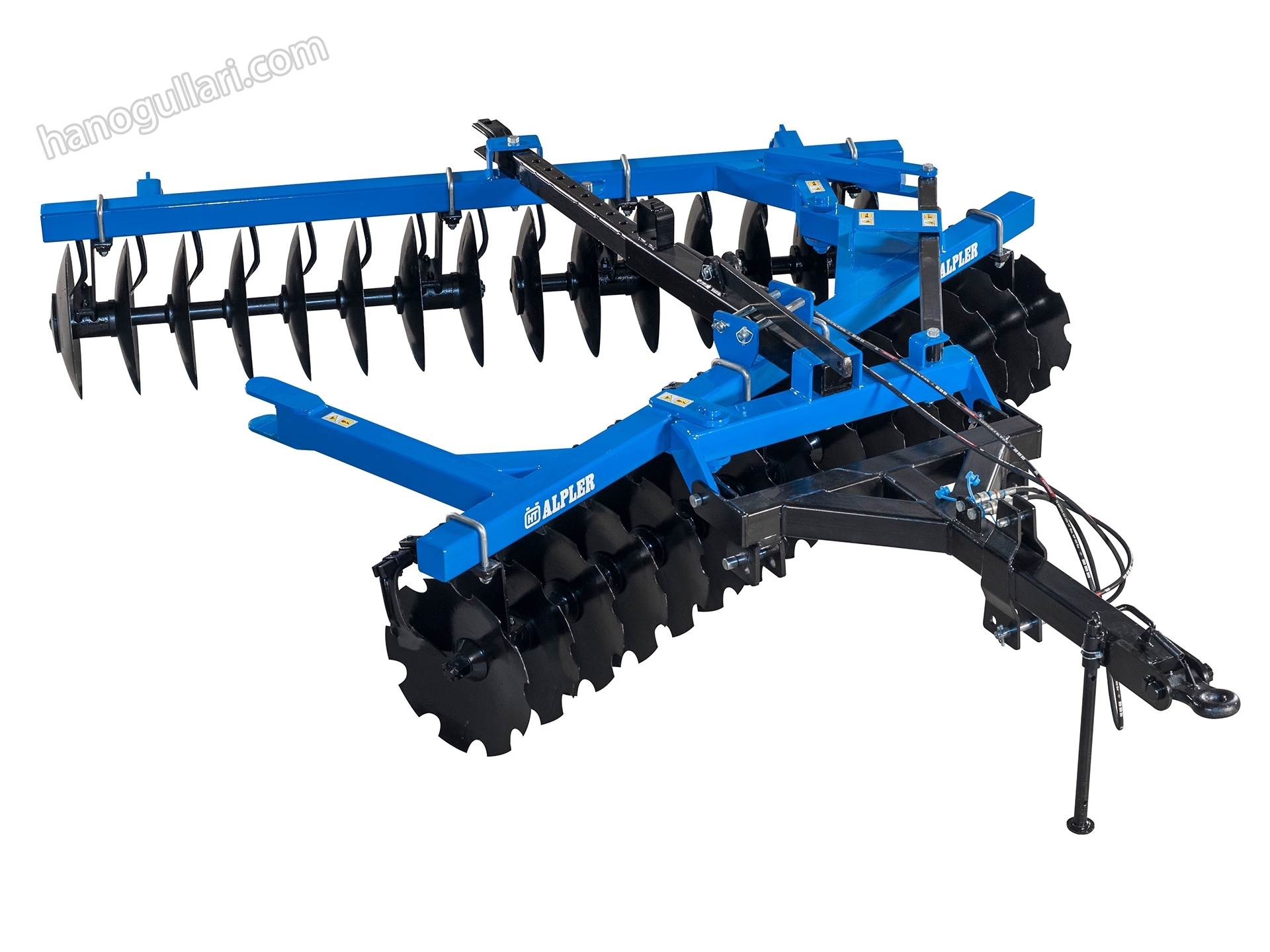

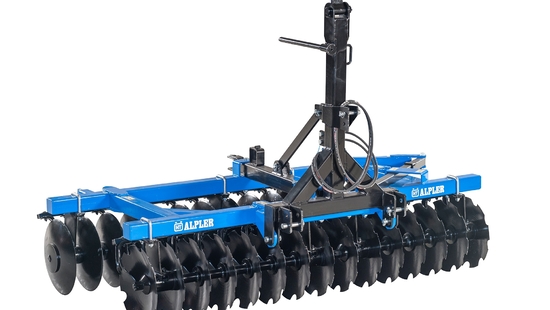

Mounted & Trailed V Type Disc Harrow

High resistible, heat treated discs notched at front and plain at rear or alternated. Easy gng angling adjustment with locking device.
Increased inter-disc spacing and disc scrapers preventing trash built up.
For heavy and hard land conditions optional weight bullets for better penetration. Spacers and bearing housings made from steel for trouble free long working life.

Track closer disc

MODEL	NUMBER OF DISCS (PIECES)	DISC DIAMETER (MM)	DISTANCE BETWEEN DISCS (CM)	WORKING WIDTH (CM)	WORKING DEPTH (CM	WEIGTH (KG)	POWER REQUIREMENT(HP)
HDHV20	20	510	19	190	15	650	50-60
HDHV22	22	510	19	209	15	760	55-65
HDHV24	24	510	19	228	15	805	60-70
HDHV26	26	510	19	247	15	830	65-75
HDHV28	28	510	19	266	15	860	70-80
HDHV30	30	510	19	285	15	930	80-90
HDHV32	32	510	19	304	15	980	90-100
DHV16	16	610	23	184	20	965	50-60
DHV18	18	610	23	207	20	1020	60-70
DHV20	20	610	23	230	20	1120	70-80
DHV22	22	610	23	253	20	1250	80-90
DHV24	24	610	23	276	20	1330	90-100
DHV26	26	610	23	299	20	1415	100-110
DHV28	28	610	23	322	20	1430	110-120
DHV30	30	610	23	345	20	1450	120-130
DHV32	32	610	23	368	20	1525	130-140
When placing an order, add the number of throws to the end of model code. Upon the needs of customers we keep the right to make changes on the product specifications.
